Motor

BETA NM Flown

Applications

Lift, push, and hybrid custom configurations power
Urban Air Mobility, VTOL, and CTOL applications.

High Torque This quad-redundant operations-expanding vehicle mover is 684 millimeters in diameter, providing high torque for high power-density operations and enabling aircraft to take off and land vertically in every element.

High Efficiency

This kilowatt-sipping, high-efficiency, sensorless-controlled motor, 566 millimeters in diameter, gives aircraft climb and range flexibility thanks to its dual-redundant internal rotor with an integrated hollow shaft.

All Conditions Every BETA propulsion system is designed, validated, conformed and customized to the operational requirements of our customers and their mission.

1000x Fewer Parts Fewer parts vs. comparable legacy aircraft engines

Over 86,000 hours of propulsion system testing

98% Efficiency H500A is 98%
efficient. The best legacy engines are ~30%

4x Redundancy BETA’s V600A lift motor features 4x redundancy. The H500A features 2x redundancy

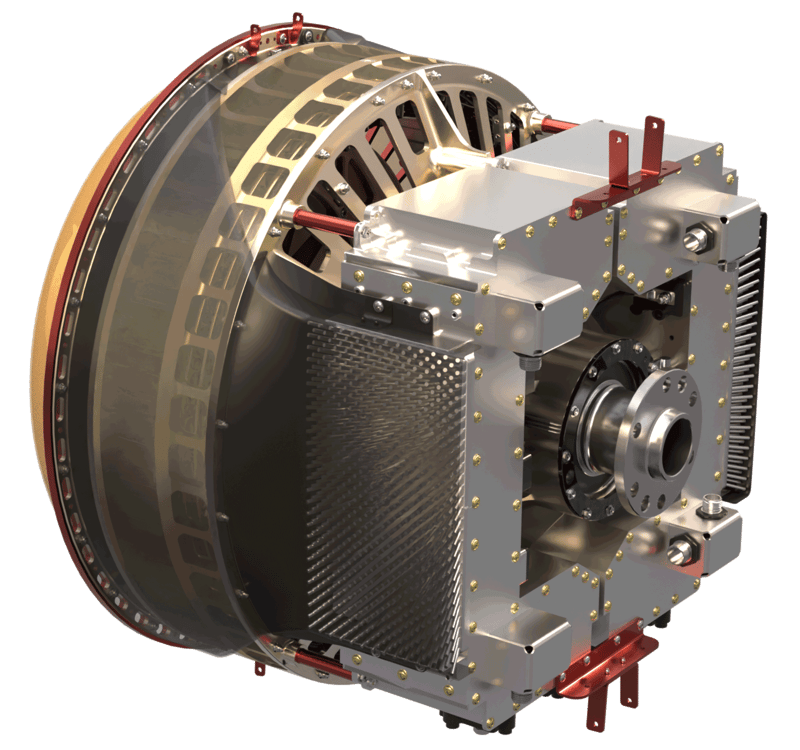

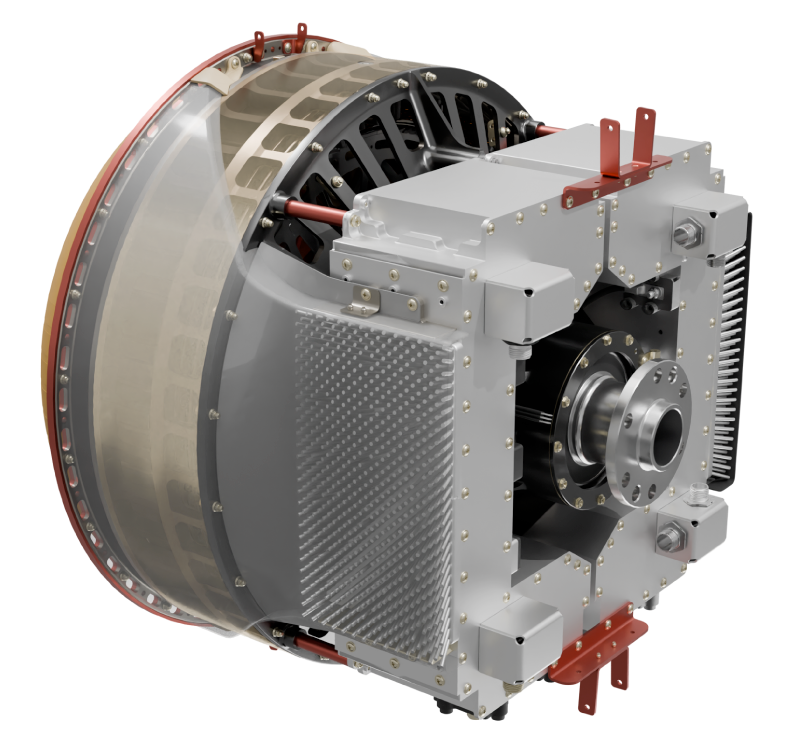

Electric Engine: H500A 2 Stators + 2 Inverters

Configuration	Pusher
Gearbox	N/A Direct Drive
Cooling	Air
Max Shaft rpm	2550 rpm
Max Power	427 kW
Takeoff Power	394 kW
Max Continuous Power	300 kW
Max Torque (Takeoff)	1475 Nm
Max Continuous Torque	1125 Nm

Performance

Power Density Max	6.0 kW/kg
Power Density Continuous	4.2 kW/kg
Torque Density Max	22.5 Nm/kg
Torque Density Continuous	15.8 Nm/kg
Efficiency ISA	97.5%

Physical Characteristics

Weight Installed (including inverters)	75 kg
Diameter	566 mm
Length	587 mm
Cooling Inlet Area	365 cm²
Max Altitude	4270 m
OAT Range	-40°C to 49°C

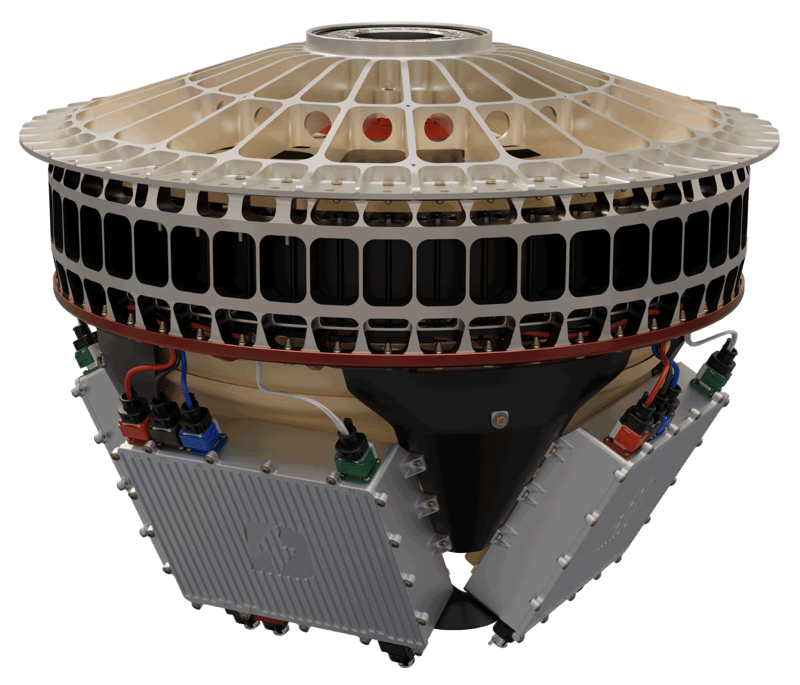

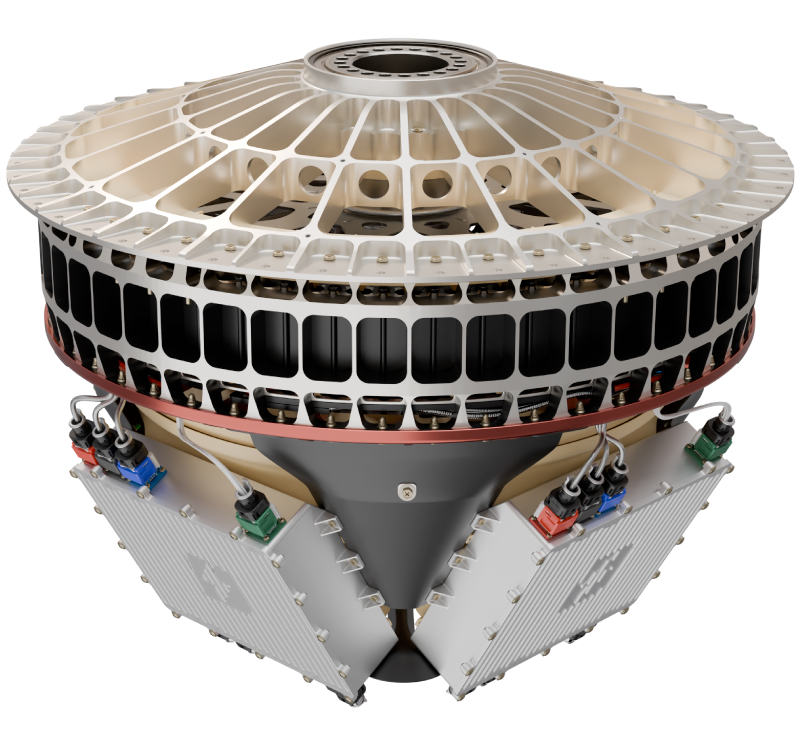

Electric Engine: V600A 4 Stators + 4 Inverters

Configuration	Lift
Gearbox	N/A Direct Drive
Cooling	Air
Max Shaft rpm	1500 rpm
Max Power	455 kW
Max Continuous Power	314 kW
Max Torque	2900 Nm
Max Continuous Torque	2000 Nm

Performance

Power Density Max	6.1 kW/kg
Power Density Continuous	4.2 kW/kg
Torque Density Max	38.7 Nm/kg
Torque Density Continuous	26.7 Nm/kg
Efficiency ISA	95%

Physical Characteristics

Weight Installed (including inverters)	73 kg
Diameter	684 mm
Length	516 mm
Cooling Inlet Area	500 cm²
Max Altitude	4270 m
OAT Range	-40°C to 49°C

Dynamic Power Analysis

Dynos — with up to 4800 Nm of torque and 3500 rpm are remote controlled, operate with regenerative power, and are under 24/7 live camera feed. All of our dynos are equipped with instrumentation such as HBM power analyzers, accelerometers, temperature sensors, torque cells, rpm meters, high speed data acquisition up to 10 kHz, and Speedgoat and Simulink controls.

We manipulate load side motors to mimic the operational behaviors of our customers' use cases, ensuring that when customers take delivery, the motor's hardest working days are behind them.

Propulsion

Applications

Designed, produced and sold by BETA Technologies, our motors power vehicles across all platforms and propulsion needs.

Climb on Kilowatts

Our electric propulsion systems set the standard for state-of-the-art electric motor technology, innovation, advanced materials, and production process.

Electric Engine: H500A 2 Stators + 2 Inverters

Performance

Physical Characteristics

Electric Engine: V600A 4 Stators + 4 Inverters

Performance

Physical Characteristics

Validation

We fly what we build. Safety, reliability and performance are the byproducts of BETA’s in-house validation and piloted flight test.

Endurance Testing

Dynamic Power Analysis
