Charge Cube

A charge solution designed for permanent installation at airports.

BETA Charge Cube

Charge Cube

AC Voltage Connection
480 Vac, 3 Phase, 60 Hz
AC Grid Current
420 Amps
Output Power - Peak, Continuous
320 kW
Battery Charge Range
Up to 1,000 VDC
Output Current - Peak, Continuous
350 Amps
Authorization
Phone App + Plug and Charge
Charging Protocol
CCS
AC Voltage Connection
480 Vac, 3 Phase, 60 Hz
AC Grid Current
420 Amps
Output Power - Peak, Continuous
320 kW
Battery Charge Range
Up to 1,000 VDC
Output Current - Peak, Continuous
350 Amps
Authorization
Phone App + Plug and Charge
Charging Protocol
CCS
BETA Thermal Management System (TMS)

Thermal Management System

Protocol
SAE AIR8487
Liquid Temperature
15°C to 21°C
Flow
60 lpm
Pressure
20 psi normal 60 psi maximum
AC Input Voltage
3P 480 VAC
AC Input Current
40 Amps
AC Input Frequency
60 Hz
Heating / Cooling Power
10 kW / 50 kW
Protocol
SAE AIR8487
Liquid Temperature
15°C to 21°C
Flow
60 lpm
Pressure
20 psi normal 60 psi maximum
AC Input Voltage
3P 480 VAC
AC Input Current
40 Amps
AC Input Frequency
60 Hz
Heating / Cooling Power
10 kW / 50 kW
A250 Charging

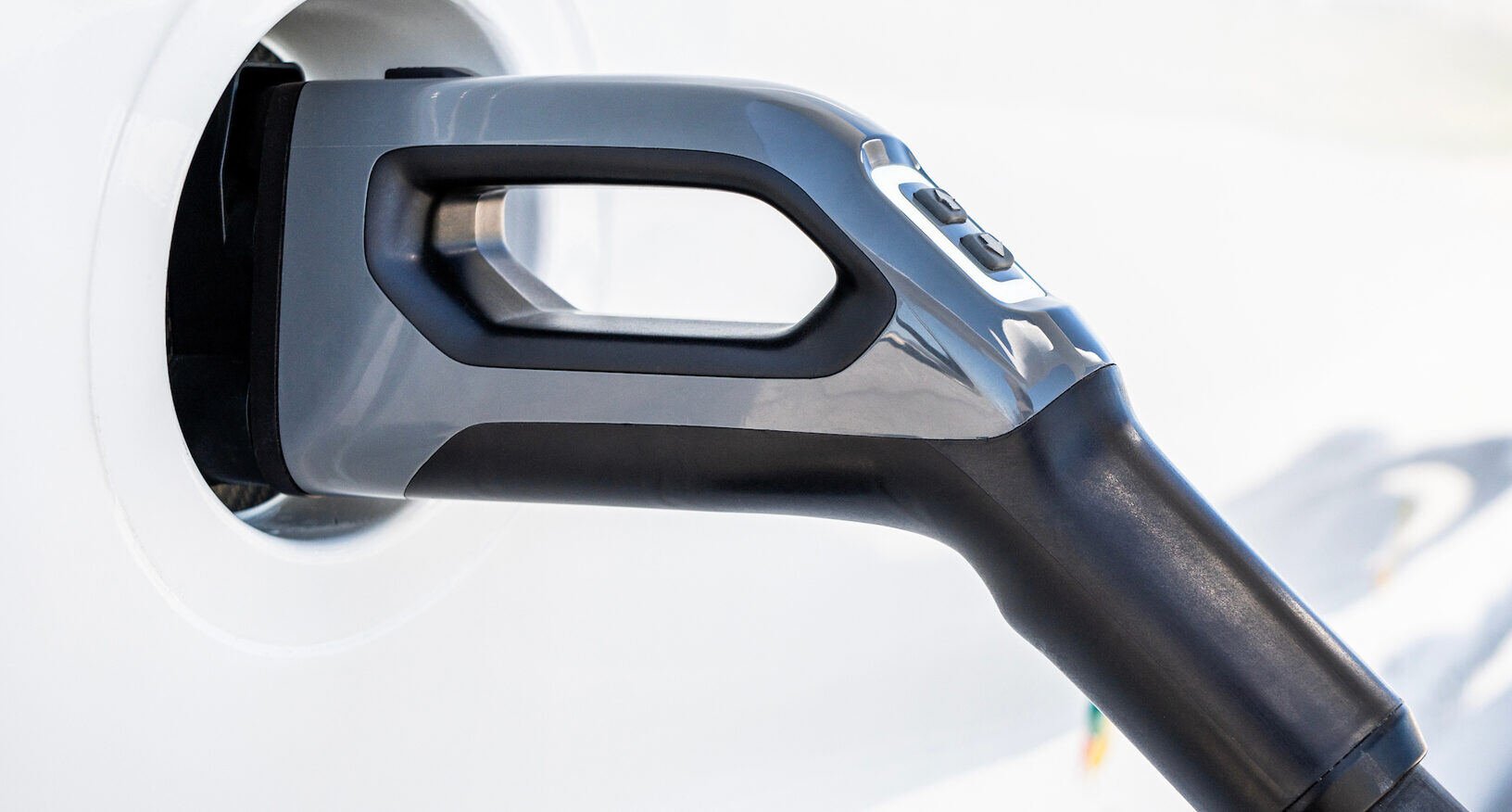

Charge Handle

Reliability meets efficiency, a charger equipped to charge the next generation electric aircraft.

Optimized Charge Time of ALIA in35 minutes.*

*with cooling

CX300 Charging

Fits under an aircraft wing

At 4 feet tall, BETA’s Charge Cubes are designed to fit underneath an aircraft wing and offer a plug-and-charge experience to pilots and crew who operate them.

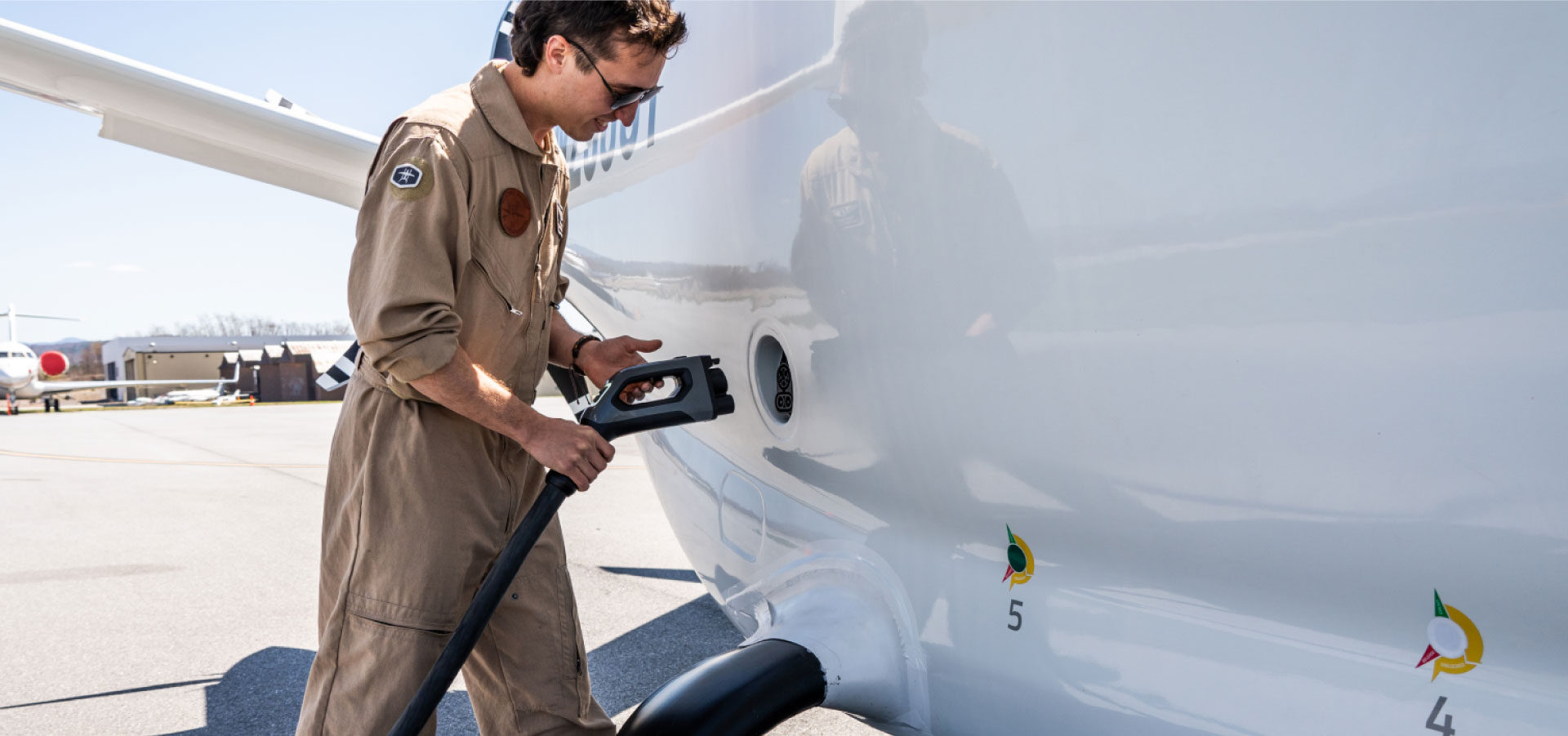

Pilot plugging in charger to aircraft

Simplified ground handling

The 50 foot cord provides flexibility in aircraft parking orientation and location to minimize aircraft ground handling and maintain a safe distance between the aircraft and its Charge Cube.

Get in touch to learn more.
